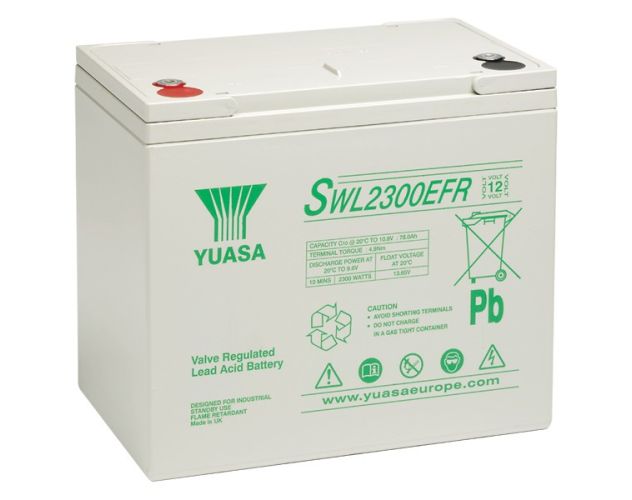

SWL2300FR Yuasa Blybatteri (High-Drain specielt til UPS-Systemer) (Flammeafvisende kasse)

SWL-serien er et forbedret NPL design som har resulteret i en forbedret energi tæthedsgraden, og giver op til 40% ekstra afledningsevne.
Alle andre attributter og driftsmæssige egenskaber er de samme, og dermed bevares fordelen af en fælles mekanisk og elektrisk design til brugere af begge produkter.

Egenskaber
Yuasa VRLA batteries can be used in any orientation excluding continuous use inverted.
Standard case material is flame retardant to (UL94) HBØ.
FR option case material is flame retardant to UL94:VØ (oxygen index 30).
SWL batteries are manufactured in factories that comply with ISO9001:2000.
FR option SWL’s comply with BS6290 Part 4 (1997).
SWL batteries comply with IEC 60896-21+22.

Specifikationer
Nominal voltage (V) 12
10m rate Constant Power (Typ) to 9.6V at 20°C (W/Block) 2400
10m rate Constant Power (Typ) to 1.6V/cell at 20°C (W/Cell) 400
20-hr rate Capacity to 10.5V at 20°C (Ah) 80.0
10-hr rate Capacity to 10.8V at 20°C (Ah) 78

Terminal Type
Threaded terminal - (M=Male or F=Female) M6 (F)
Torque (Nm) 4.8

Operating Temperature Range
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C

Storage
Capacity loss per month at 20°C (% approx.) 3

Case Material
Standard ABS (UL94:V0)

Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std 20°C (mV) -3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV) -4

Charge Current
Float charge current limit (A) No limit
Cyclic (or Boost) charge current limit (A) 19.5

Maximum Discharge Current
1 second (A) 800
1 minute (A) 400

Short-Circuit Current & Internal Resistance
Internal resistance - according to EN IEC 60896-21 (mΩ) 7.71
Short-Circuit current - according to EN IEC 60896-21 (A) 1857

Impedance
Measured at 1 kHz (mΩ) 5

Design Life & Approvals
EUROBAT Classification: High Performance 10 to 12
Yuasa design life at 20°C (yrs) up to 10
