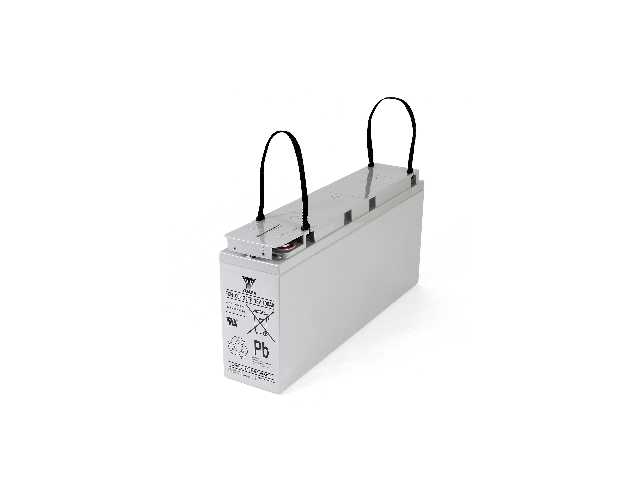

Yuasa FXH100-12 - 12V 100Ah (Frontterminal batteri til Rack-System)

Yuasa FXH100-12IFR

FXH-serien af batterier er til standby-strømforsyninger, herunder Telekommunikation og UPS.
Front terminal design giver mulighed for hurtig Installation og nem vedligeholdelse. Med høj ydeevne og lang levetid er dette batteri et glimrende valg for alle kritiske Standby-applikationer.

Takket være den utrolig høje ydeevne FXH tilbyde, er den også helt ideelt til cyklisk brug til forskellige batteriløsninger. Med dens lange levetid opnås langt flere cyklusser, end ved traditionelle forbrugsbatterier

Specifications
Nominal voltage (V) 12
20-hr rate Capacity to 10.5V at 20°C (Ah) 101.2
10-hr rate Capacity to 10.8V at 20°C (Ah) 98.4

Dimensions
Length (mm) 508
Width (mm) 106
Height (mm) 236
Mass (kg) 34.9

Terminal Type
Threaded terminal - (M=Male or F=Female) M6 (F)
Torque (Nm) 3.9-5.4

Operating Temperature Range
Storage (in fully charged condition) -15°C to +45°C
Charge -15°C to +45°C
Discharge -15°C to +45°C

Storage
Capacity loss per month at 20°C (% approx.) 3

Case Material
Standard ABS (UL94:V0)

Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std 20°C (mV) -3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.52 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV) -4

Charge Current
Float charge current limit (A) 10.12
Cyclic (or Boost) charge current limit (A) 10.12

Maximum Discharge Current
1 second (A) 540
1 minute (A) 279

Impedance
Measured at 1 kHz (mΩ) 3.5

Design Life & Approvals
EUROBAT Classification: Long life 10 to 12
Yuasa design life at 20°C (yrs) up to 10
